earth testing methods,In order to test the resistance using this method, two test electrodes and an earth resistance tester are required. One of these electrodes is used to inject current into the ground and the other (potential electrode) is used to check the voltage. The current electrode is inserted at a distance from the . Tingnan ang higit paThe 3-point method requires all the connections to the earth electrode removed before conducting the test whereas . Tingnan ang higit pa
The attached rod technique uses a similar concept to the fall-of-potential method while maintaining the possibility to conduct the test without disconnecting the earth electrode . Tingnan ang higit pa
The dead earth method or Two electrode method is one of the earth resistance measurement methods adopted whenever there is no . Tingnan ang higit paIf the sphere of influence of the ground electrode is large that the sphere of influence of the current electrode is so close or the space on the testing ground is limited . Tingnan ang higit paearth testing methods Inspection and testing of earth electrodes How do you perform ground testing? Depending on the situation you’re in and what kind of ground setup you’re looking at, there are four different methods of testing earth ground resistance available. Stakeless .

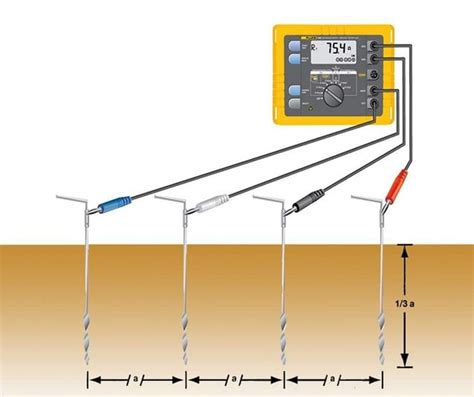

Many of these methods have been designed in an attempt to alleviate the necessity for excessive electrode separations, when measuring large earth systems, or . There are four types of earth resistance testing methods available: Soil Resistivity (using stakes) Fall-of-Potential (using stakes) Selective (using 1 clamp and stakes) Stakeless (using 2 clamps only)
interest in earth testing. Earth resistivity measurements can be used conveniently for geophysical prospecting — to locate ore bodies, clays, and water-bearing gravel . Ground resistance testing, also known as earth resistance testing, is the process of measuring the resistance of a grounding system to the Earth. The purpose of this test is to ensure that the grounding . There are various methods to measure earth resistance on existing systems. Some of the common methods are: Fall of Potential Method. This is also known as the 3-point method or potential drop . The principles and methods of earth resistance testing covered in this section apply to lightning arrester installations as well as to other systems that require low resistance ground connections. Such .An earth electrode and earth electrode resistance are defined in BS 7671 as: Earth electrode – conductive part, which may be embedded in the soil or in a specific . Grounding testers are indispensable troubleshooting tools to help you maintain uptime. With frustrating, intermittent electrical problems, the problem could be related to poor grounding or poor .The Fluke 1625 earth ground tester is able to measure earth ground loop resistances for multi-grounded systems using only current clamps. This test technique eliminates the dangerous, and time consuming activity .
Selective earth ground testing is a method used to measure the resistance of specific components, (such as grounding electrodes or connections.) within an earthing (grounding) system using one clamp and two stakes. Rather than testing the entire grounding system, this approach allows for the targeted assessment of individual grounding elements. .
The selective testing method uses a current clamp while the electrode of interest is still under test. The clamp meter, like a Fluke 1625-2, is used to isolate the test current injected into the electrode under test. Two earth stakes are placed in the soil in a direct line away from the electrode of interest, usually spacing of 20 meters is .
The principles and methods of earth resistance testing covered in this section apply to lightning arrester installations as well as to other systems that require low resistance ground connections.Such tests are made in power-generating stations, electrical-distribution systems, industrial plants, and telecommunication systems.The selective testing method uses a current clamp while the electrode of interest is still under test. The clamp meter, like a Fluke 1625-2, is used to isolate the test current injected into the electrode under test. Two earth stakes are placed in the soil in a direct line away from the electrode of interest, usually spacing of 20 meters is . 2. Selective earth ground testing. The selective testing method uses one clamp and two stakes. It allows you to measure the ground resistance at specific parts of an installation, isolating the system to check or reference what’s in place. The selective testing method uses a current clamp while the electrode of interest is still under test.earth testing methodsStakeless Measurement. The Fluke 1625 earth ground tester is able to measure earth ground loop resistances for multi-grounded systems using only current clamps. This test technique eliminates the dangerous, and time consuming activity of disconnecting parallel grounds, as well as the process of finding suitable locations for auxiliary ground .Inspection and testing of earth electrodes (Other standards may Fall-of-potential or three-terminal earth resistance test... 27 12 Dead earth method or two-point earth resistance test... 27 13 Effect of C location on the earth resistance curve... 31 14 Example of how C location affects the earth resistance curve ... 32 15 Earth resistance decreases with depth of electrode in .
